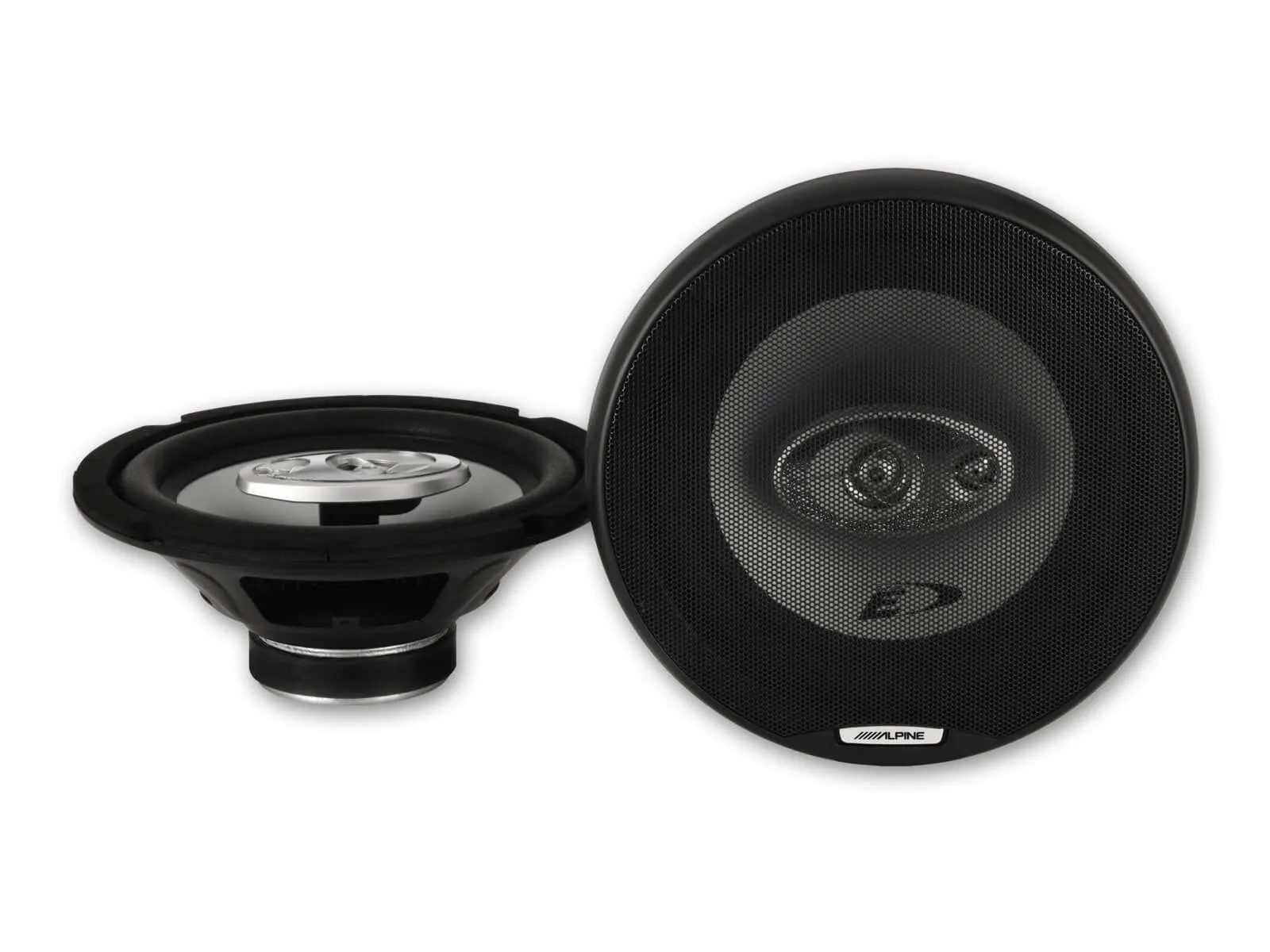

COAXIAL 3-WAY SPEAKER SYSTEM

Alpine´s Type-E Series lineup gives you high quality, excellent performance and easy installation. Their affordable price make them a great value, too.

SYSTEM

• Coaxial 3-Way Speaker

Speaker Units

• Woofer: 200 mm (8") DIA, Cone Type
• Mid: 28 mm (9/8") DIA, Dome Type
• Tweeter: 16 mm (5/8") DIA, Dome Type

Power Handling

• 280 Watts Peak

Power Handling

• 45W RMS

Impedance

• 4 ohms

Sensitivity

• 90 dB/W (1m)

Frequency responce

• 40 Hz - 20 KHz

Woofer Voice Coil Diameter

• 25 mm

Mid Voice Coil Diameter

• 13 mm

Woffer Edge Material

• Foam

Mid Edge Material

• PEI

Diaphragm Material

• Woofer: Coated Craft Paper
• Mid: PEI

Magnetic Material

• Woofer: Barrium Ferrite
• Mid: Neodymium
• Tweeter: Piezo

Mounting Depth/Drop-in Mounting

• 75 mm

Weight (One Speaker)

• 850 gr. (2lbs, 35oz)

Gross Weight

• 2,4 Kg
