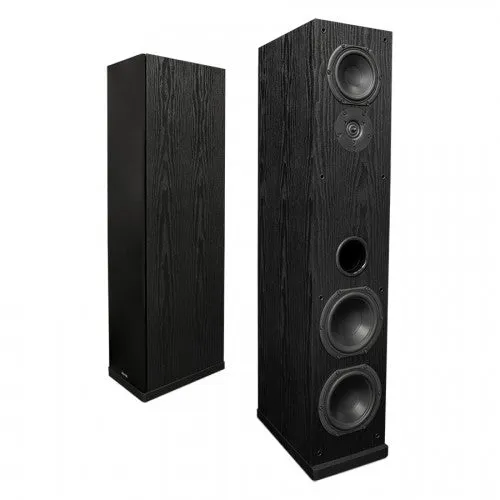

HARMONIX MK2

FLOORSTANDING

Tight, tuneful bass

Clear, dynamic mid-range

Up close and personal

Known for their musicality, these 3 way speakers produce a truly natural, all-encompassing sound. Positioning is made easy with front-facing ports.

ELOQUENT FLEXIBILITY

The cool, cosy atmosphere of a jazz club, or the experience of being right there in the moment at the front of the stage.  Sound that will envelop and surround you. Sound that makes you feel like you can almost reach out and touch it.

These 3 way speakers feature two hefty 165mm bass drivers in an extended bass shelf alignment, providing deep, tight bass.  A dynamic non-fatiguing vocal mid-band is delivered by a 130mm midrange, and lucid, detailed highs come from the 25mm super audio tweeter with an extended frequency response to 40kHz.

Producing a truly natural, all-encompassing sound, the Harmonix Mk2 features front facing ports which allow the speaker to be pushed up against a wall without compromising sound quality. They are also timbre matched with all Krix speakers for surround sound fidelity and come in a range of elegant cabinet finishes for definitive style and flexibility.

For the ultimate sound experience at home, play it through Krix.

SPECIFICATIONS

Frequency Range
35Hz-40kHz in room response

Power Handling
50 – 250 Watts RMS recommended amplifier power

Sensitivity
90dB for 2.83 volts at 1 metre

Impedance
Nominally 6 Ohms (minimum 3.1 Ohms)

Configuration
3-way

Enclosure Type
Dual chambers – sealed midrange chamber with bass reflex main chamber. Front vented with internal and external flaring

Dimensions
1040mm high x 220mm wide x 350mm deep (including feet)

Low Frequency Drivers
2 x nominal 165mm (6½”) laminated polypropylene cones. 33mm (1¼”) voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilization ring for low distortion

Mid Frequency Driver
1 x nominal 130mm (5″) coated paper cone. 26mm (1″) voice coil wound on high powered aluminium former, using copper shorting ring and oversized magnet for lower distortion

High Frequency Driver
25mm (1″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion

Input Terminals
Dual gold plated bi-wire binding posts (bi-wireable, bi-ampable)

Weight
28kg each
