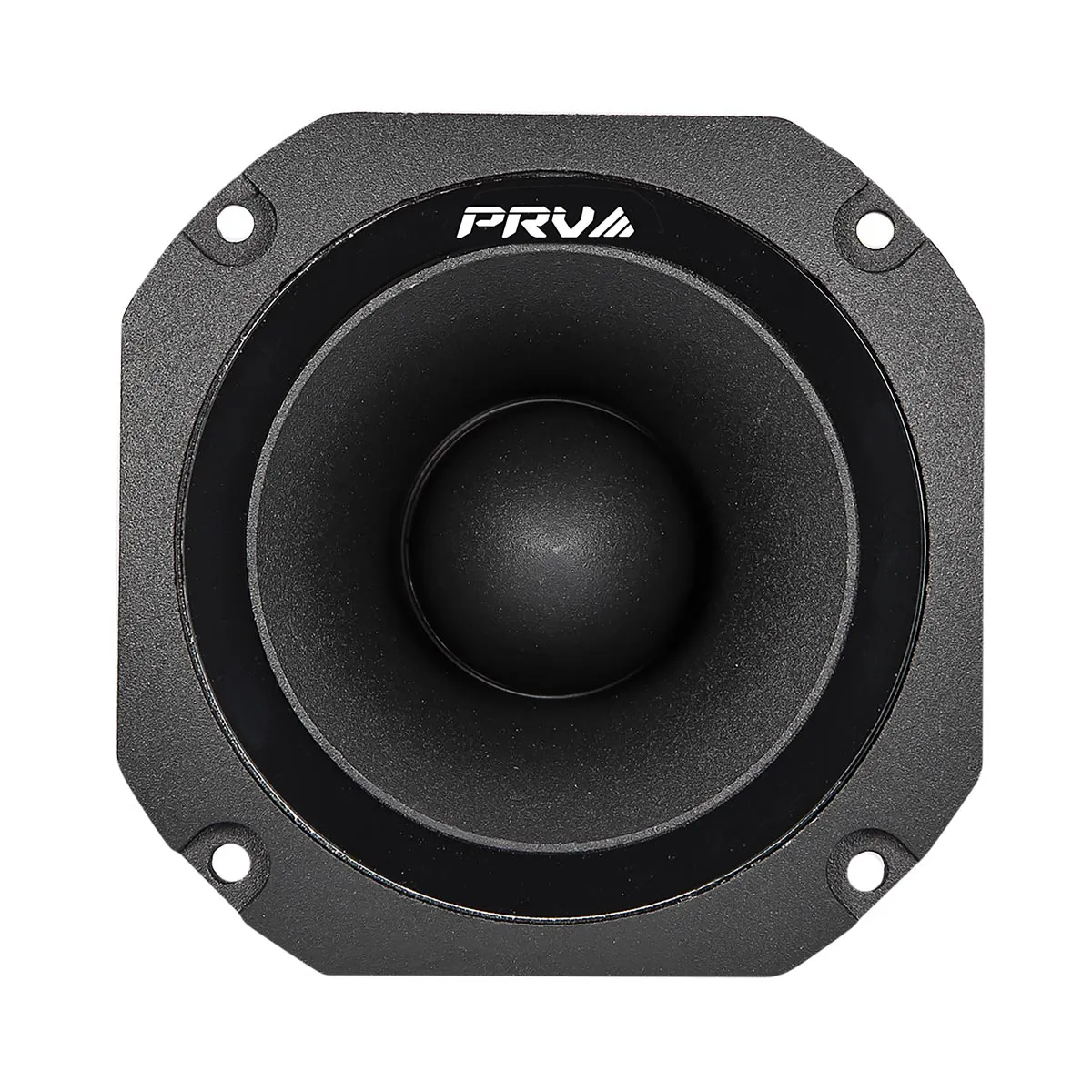

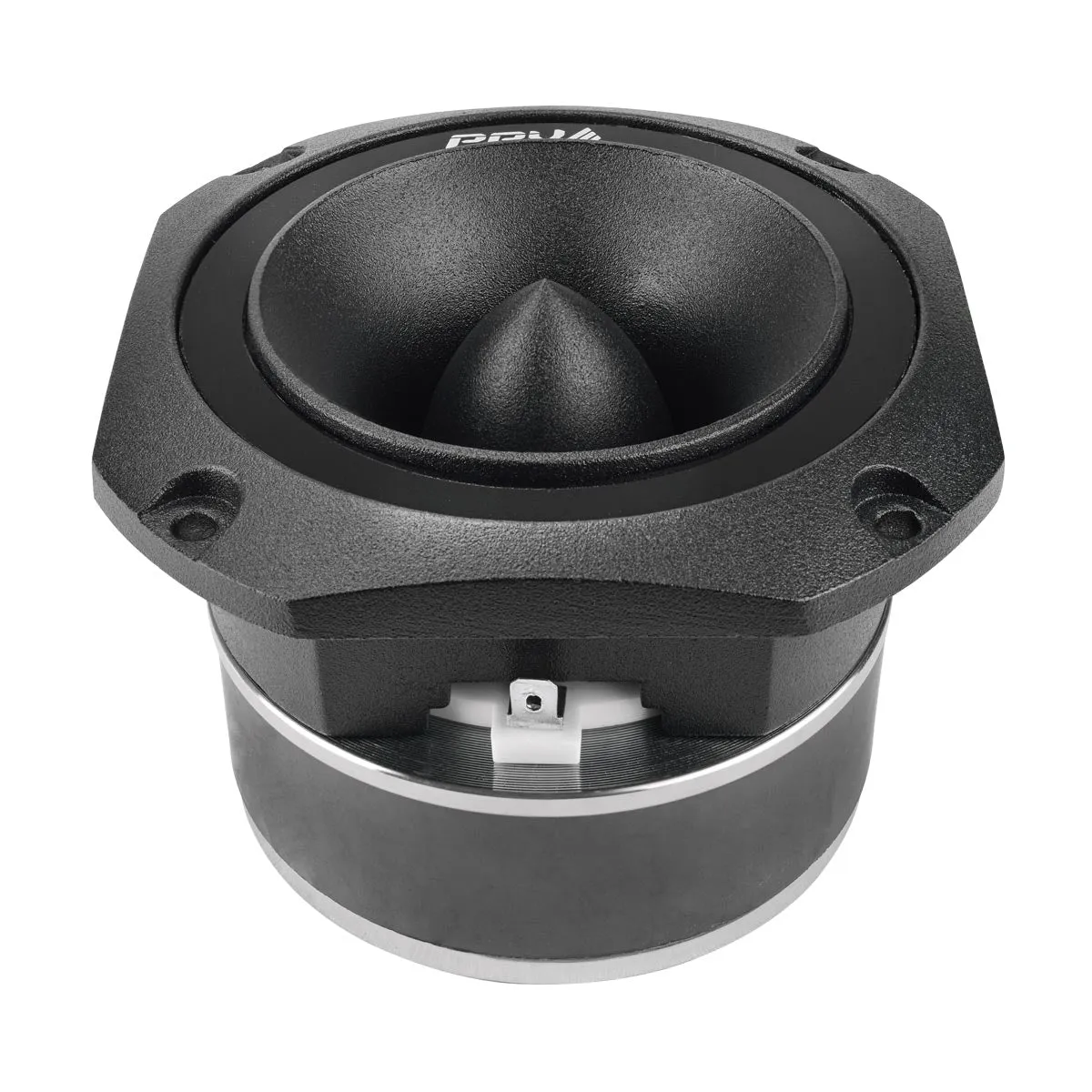

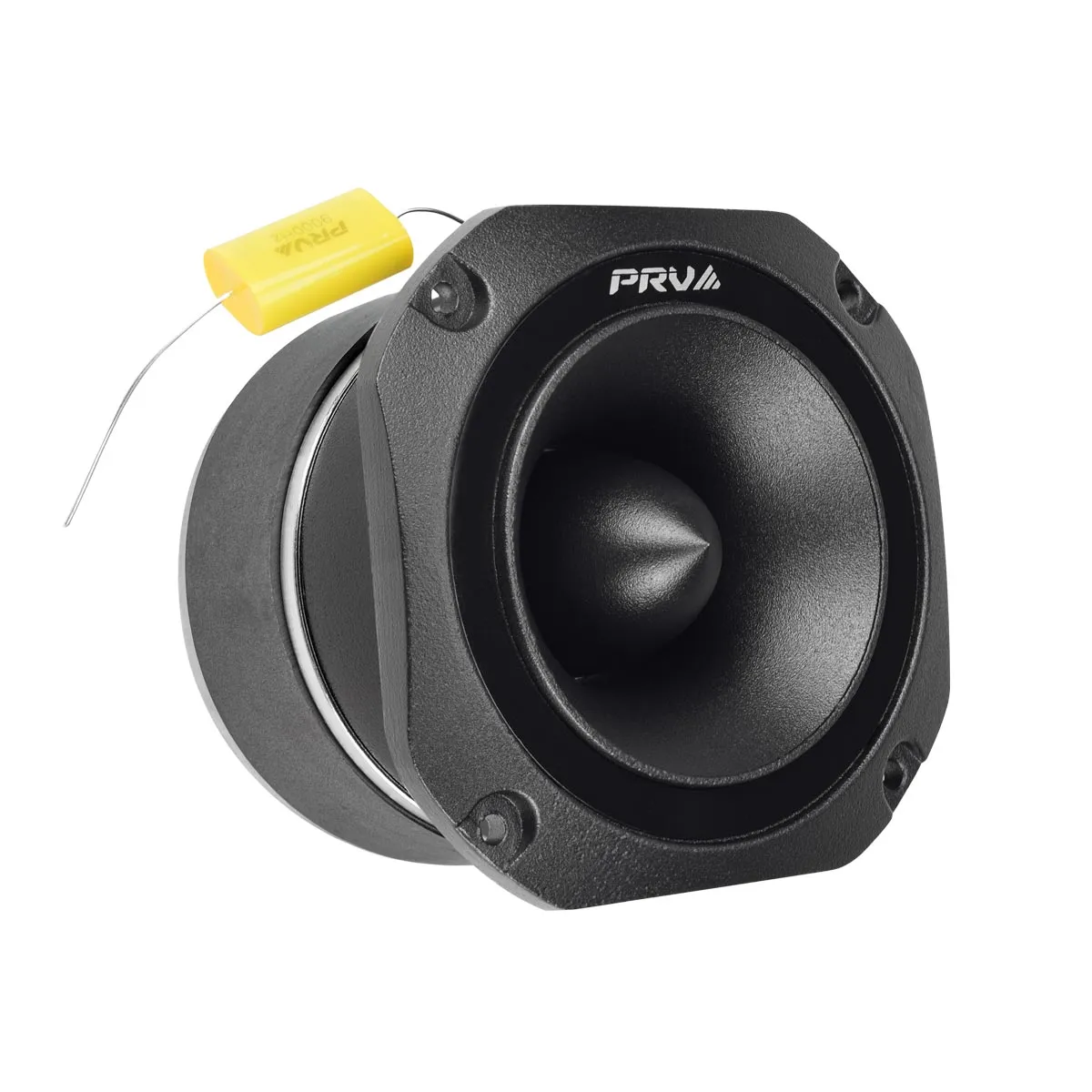

Add detail to any speaker with PRV Audio’s TW700Ti titanium bullet super tweeter! With high frequency response up to 20,000 Hz and a sensitivity of 107 dB at 1W/1m, the TW700Ti can keep up with even the most demanding speaker systems.
Flat sides allow for close side by side mounting. Double magnet that efficiently increases the magnetic field into the gap, delivering high sensitivity and low distortion.
High Frequency Bullet Tweeter, capable of adding brilliance and articulation to any professional loudspeaker system.
GENERAL SPECIFICATIONS
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 120 Watts |
| Program Power | 240 Watts |
| Sensitivity 2.83V at 1m | 107 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 5000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 3,500 – 20,000 Hz |
| Voice Coil Diameter | 1.5”(38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.60 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Depth | 2.97” (75.54 mm) |
| Mounting Depth | 2.55” (64.9 mm) |
| Overall Width | 4.05” (103 mm) |
| Overall Height | 4.05” (103 mm) |
| Cutout Diameter | 3.58” (91 mm) |
| Net Weight | 3.48 lbs (1.58 kg) |
| Shipping Weight | 3.62 lbs (1.64 kg) |
| Carton Dimensions W x L x H | 4.5” x 4.5” x 3.25” (114 x 114 x 82.5 mm) |
